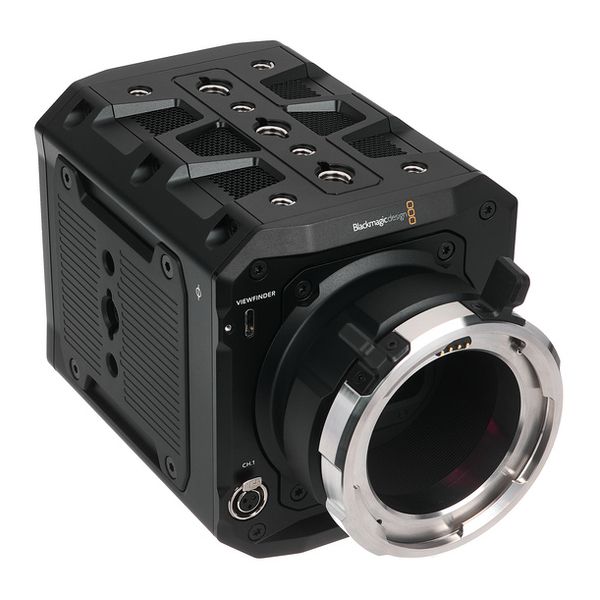

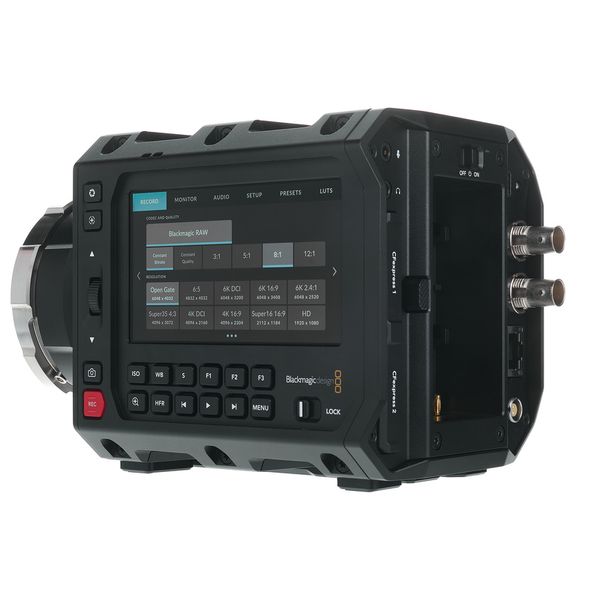

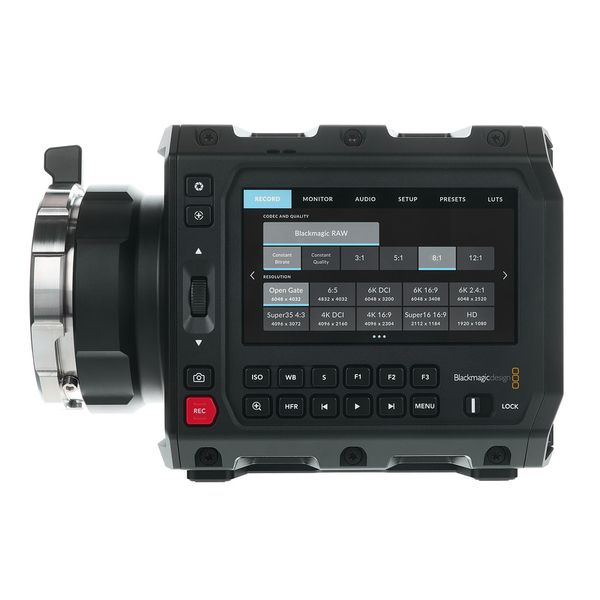

Blackmagic Design PYXIS 6K (PL Mount)

Full-frame Cine Camera

• 6K camera with PL mount
• Features a 6048 x 4032 full-frame HDR sensor with integrated optical low-pass filter, two native ISO values and two CFexpress media slots

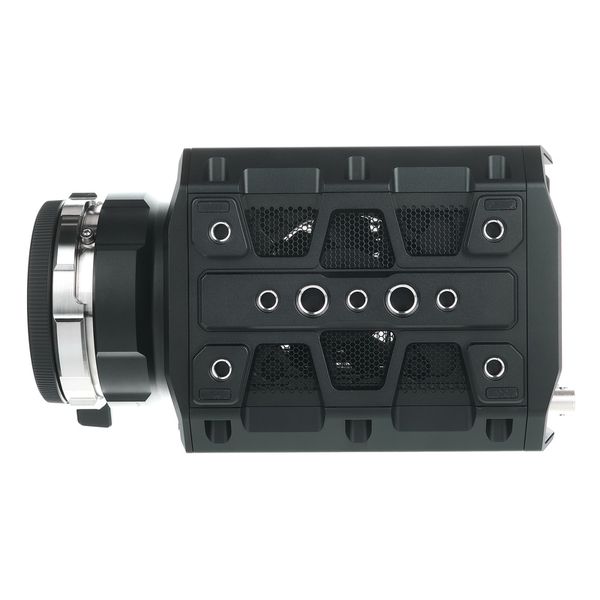

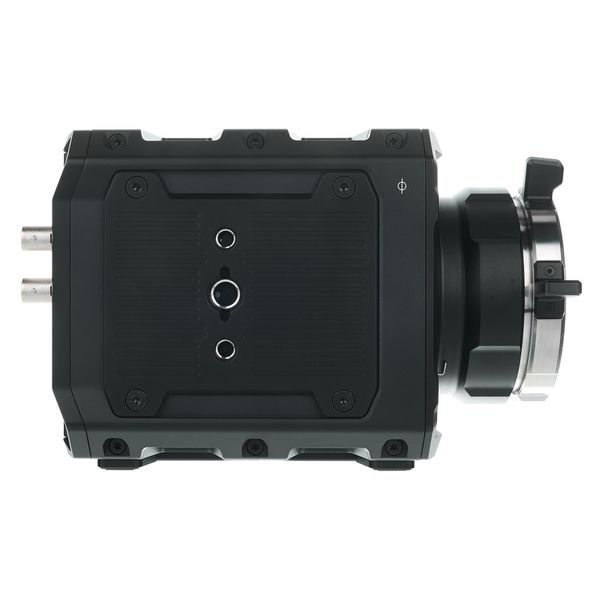

• Customisable housing with flexible mounting options and side plates
• Screen type: Capacitive LCD touchscreen
• Integrated stereo microphone
• Built-in speaker: 1 mono speaker
• Metadata support: automatically populated lens data from electronic L-mount lenses
• Automatic recording of camera settings, motion sensor data as well as slate data such as project, scene number, shot and special notes can also be embedded in metadata of Blackmagic RAW files
• Media format: can format media in the ExFAT (Windows/Mac) or HFS+ (Mac) file systems
• Memory type: 1 CFexpress type B
• 1 High-speed USB-C expansion port for external media
• Operating systems: Mac 13.0 Ventura, Mac 14.0 Sonoma or later / Windows 10 and 11
• Power supply via external 1-12 V power supply unit
• External power input: 1x 2-pin locking plug
• Battery type: BP-U
• Power: 11 - 19.5 V
• Dimensions: 151 x 106 x 119 mm
• Weight: 1.50 kg

Technical Data:

• Effective sensor size: 36 x 24 mm (full frame)

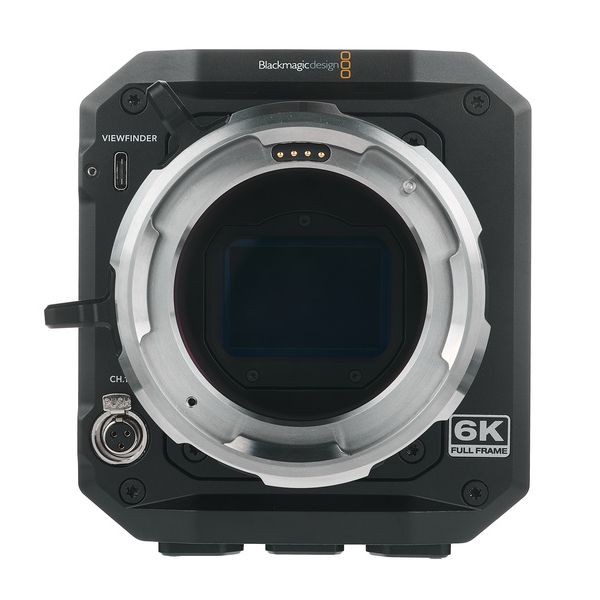

• Lens mount: PL
• Lens control: Iris and focus on supported lenses
• Dynamic range: 13 dB
• Dual Native ISO: 400 und 3200
• Recording resolutions: 6048 x 4032 (Open Gate 3:2) up to 36 fps, 4832 x 4032 (Anamorphic 6:5) up to 36 fps, 6048 x 3200 (6K DCI 17:9) up to 48 fps, 6048 x 2520 (6K 2.4: 1) up to 60 fps, 4096 x 3072 (Super 35 4:3) up to 50 fps, 4096 x 2160 (4K DCI 17:9) up to 60 fps, 2112 x 1184 (Super 16 16:9) up to 100 fps
• 1920 x 1080 (1080 HD 16:9) up to 120 fps
• Frame rates: Maximum sensor frame rate depending on the resolution and the selected codec
• Supported project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps
• Off-speed frame rates of up to 60 fps in 6K 2.4:1 and 4K DCI 17:9
• 100 fps in Super 16 16:9 and 120 fps in 1080 HD
• Focus: Autofocus available with compatible lenses
• Iris control: Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses.
• Iris button for instant auto iris settings on compatible lenses

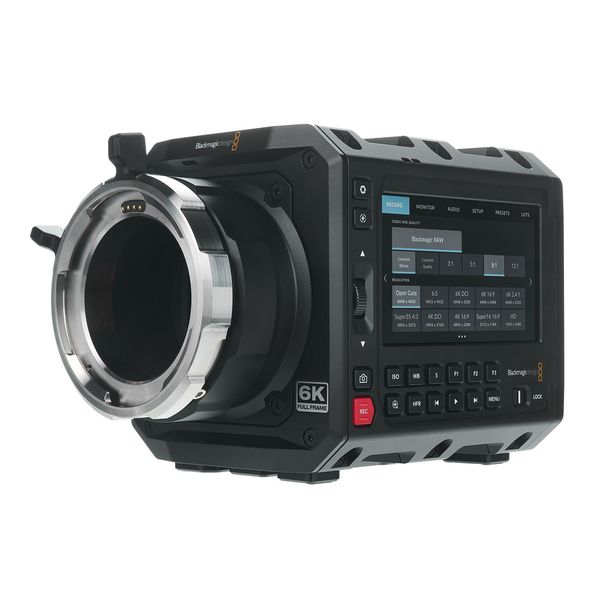

• Screen dimensions: 4 inches with 1920 x 1080 resolution
• Screen brightness: 1500 nits

Control elements:

• 1 On/Off switches
• 1 Record button
• 1 Scroll wheel with push
• 1 ISO button
• 1 White balance
• 1 Shutter button
• 3 Fn buttons configurable via software
• 1 Focus button
• 1 Iris button
• 1 High Frame Rate (HFR) button
• 1 Zoom button
• 1 Menu button
• 1 Playback button
• 1 Next clip button
• 1 Previous clip button

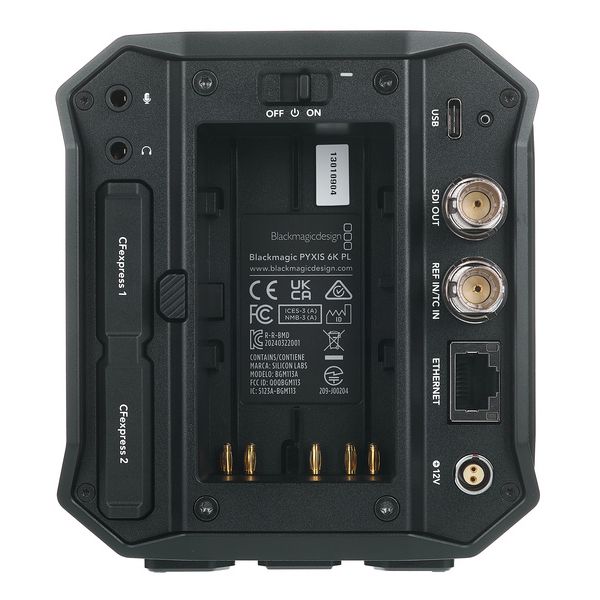

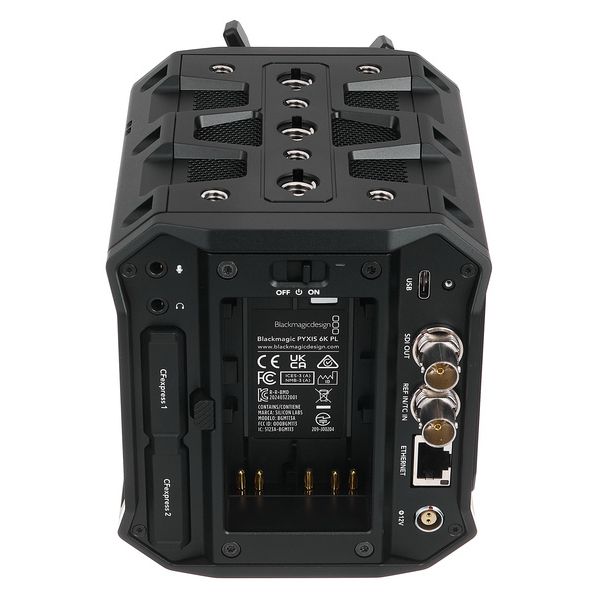

Connections:

• Timecode clock: High-precision timecode clock, less than 1 frame drift every 8 hours: 1x 12G-SDI up to 2160p60, 1 viewfinder USB-C with power, data, video and locking connection
• Analogue audio inputs: 1 mini XLR analogue audio input, switchable between microphone with phantom power supply and line level (up to +14 dBu), 1x 3.5 mm stereo input
• Analogue audio outputs: 1x 3.5mm headphone jack
• Reference inputs: Tri-Sync/Black Burst and timecode
• Computer interface: USB Type-C for external drive recording, PTP camera control and software updates
• Ethernet: 1x 1 Gbit/s RJ-45 connection that supports 10/100/1000 BASE-T
• 2 CFexpress type B card slot
• 1 USB-C 3.1 Gen 1 expansion port for external media for Blackmagic RAW and H.264 Proxy Recording

Supported Codecs:

• Blackmagic RAW Constant Bitrate 3:1
• Blackmagic RAW Constant Bitrate 5:1
• Blackmagic RAW Constant Bitrate 8:1
• Blackmagic RAW Constant Bitrate 12:1
• Blackmagic RAW Constant Quality Q0
• Blackmagic RAW Constant Quality Q1
• Blackmagic RAW Constant Quality Q3
• Blackmagic RAW Constant Quality Q5
• H.264 Proxy in 1920 x 1080, 8 bit 4:2:0

Included software:

• Blackmagic OS
• DaVinci Resolve Studio for Mac and Windows including activation key
• Blackmagic Camera Setup
• Blackmagic RAW Player
• Blackmagic RAW QuickLook Plugin
• Blackmagic RAW SDK
• Blackmagic RAW Speed Test

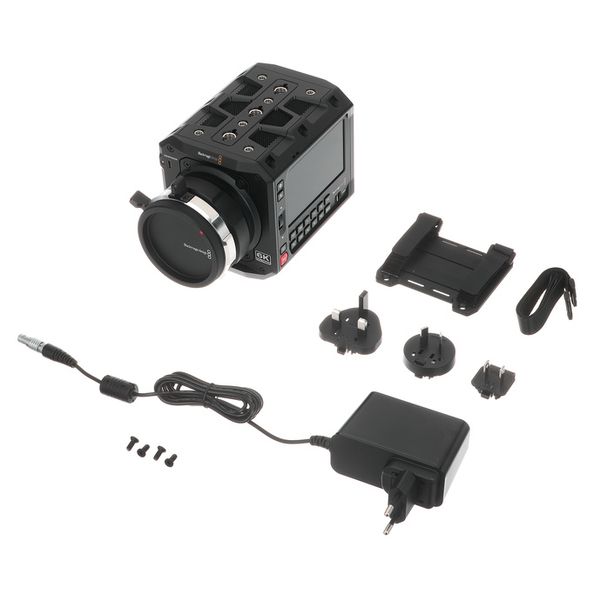

Included in delivery:

• Blackmagic PYXIS 6K
• Lens turret dust cap
• PYXIS Standard Plate
• PYXIS-SSD-Plate
• 60W power supply with locking connector and international adapters
• DaVinci Resolve Studio activation key
