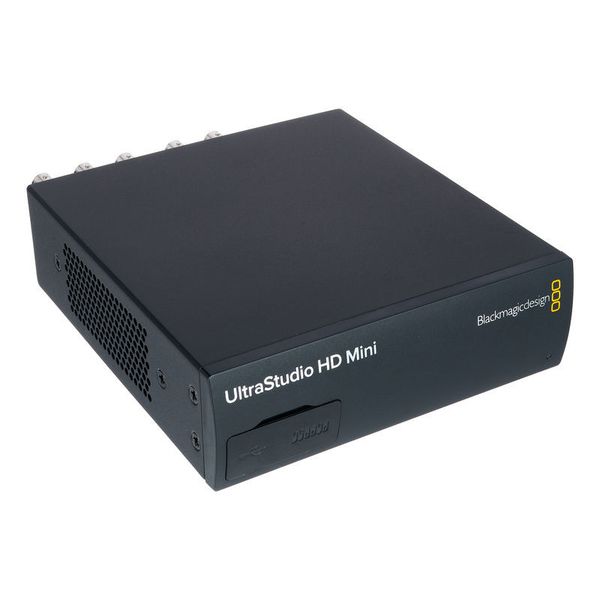

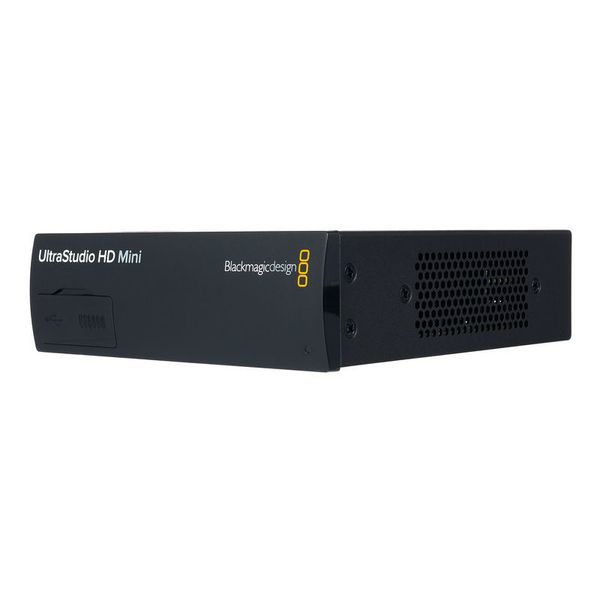

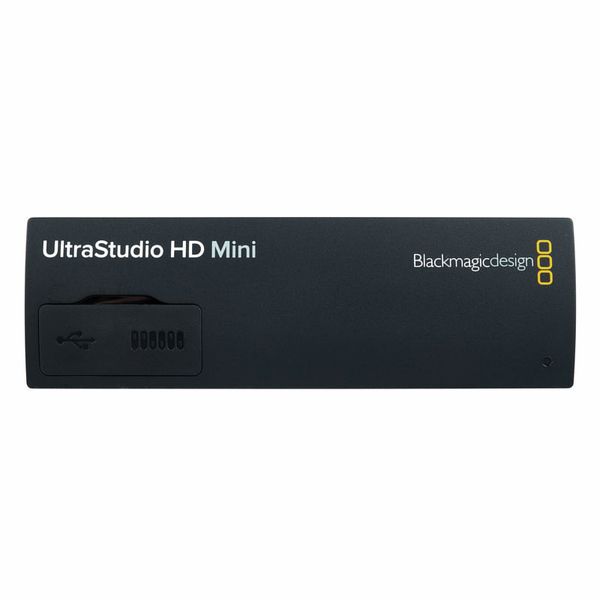

Blackmagic Design UltraStudio HD Mini

Portable recording and playback solution with Thunderbolt 3

• Compact enough to take it anywhere and so powerful that it is also suitable for high-end projects
• Can record and play back all formats up to 1080p60, in full 10-bit YUV or up to 1080p / 30 and 2K DCI in 12-bit RGB
• HDMI output for monitoring on a large screen TV
• Dual SDI outputs for playback with fill and key signals
• Analogue audio and video inputs for digitising and archiving material from older analogue MAZs
• An optional Smart Panel with LCD can also be attached to view preview video, sound levels, time code and format information (Art.485905, not included in the scope of delivery)
• Thunderbolt 3 interface for transfer rates of up to 40 Gbit / s
• Thunderbolt 3 for bus-operated use

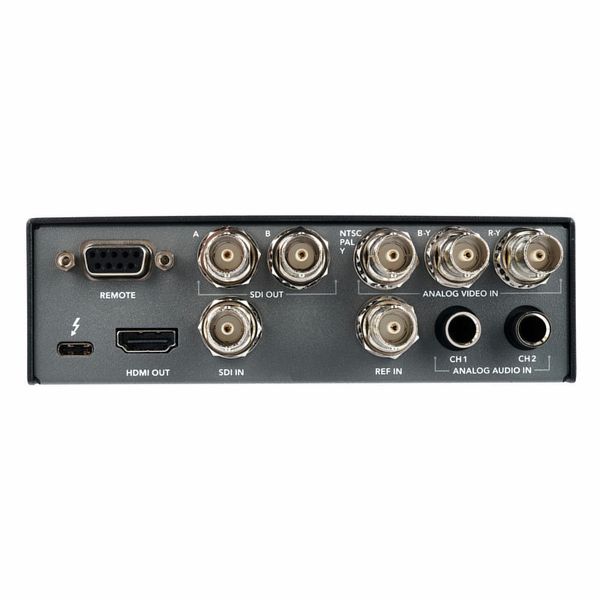

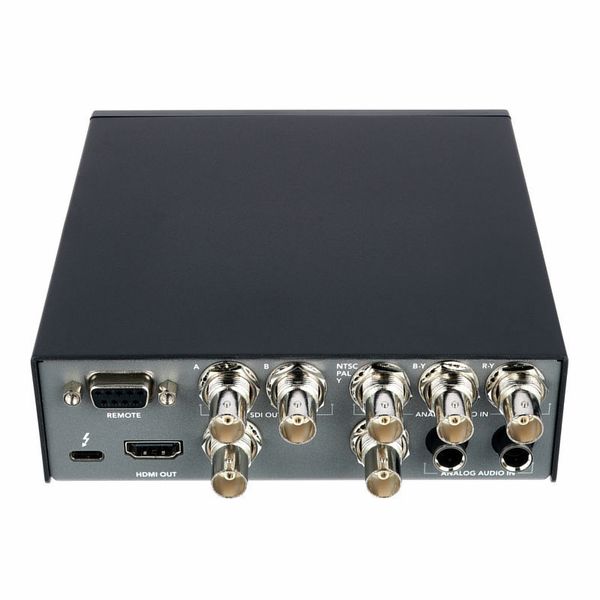

• 3G-SDI input and two 3G-SDI outputs for dual-link SDI as well as fill and key playback
• Aupports Level A and Level B 3G-SDI
• HDMI 1.4a output
• Y, Cb, Cr and NTSC / PAL input
• Two 1/4 "jacks for balanced analog audio
• Tri-sync and blackburst reference input
• RS422 connections for deck control
• Supports 16 embedded audio channels via SDI and 2 channels via HDMI
• Supports all SD and HD formats up to 1080p / 60 and 2K DCI 25p for 10-bit YUV
• Supports all SD and HD formats up to 1080p / 30 for 12-bit RGB
• Suitable for the Teranex mini rack tray (Art.485909, not included in the delivery) for installation in equipment racks
• Dimensions (W x H x D): 140 x 44 x 170 mm
• Weight: 0.61 kg

Note: Requires a computer equipped with Thunderbolt 3 USB-C port

Note: IEC power connection cable not included in delivery.
